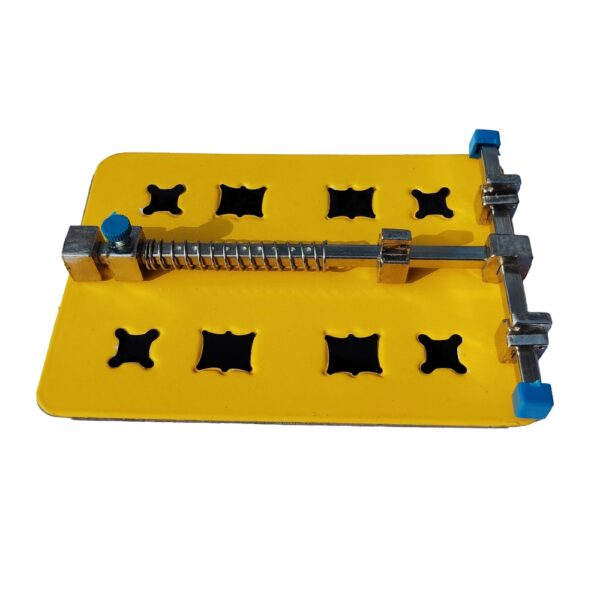

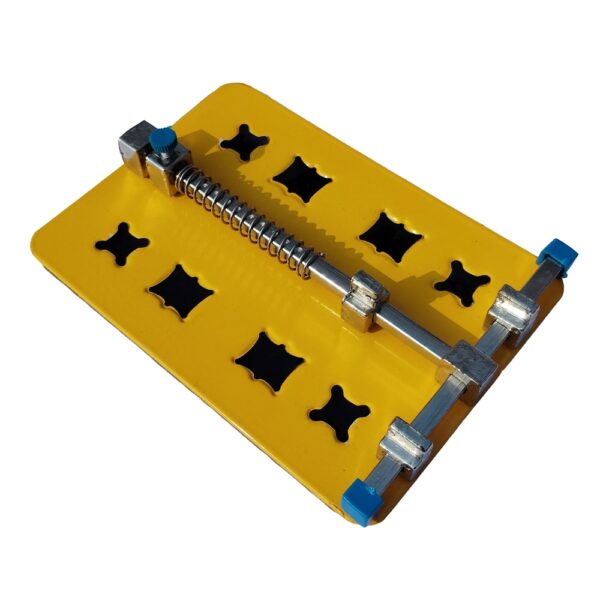

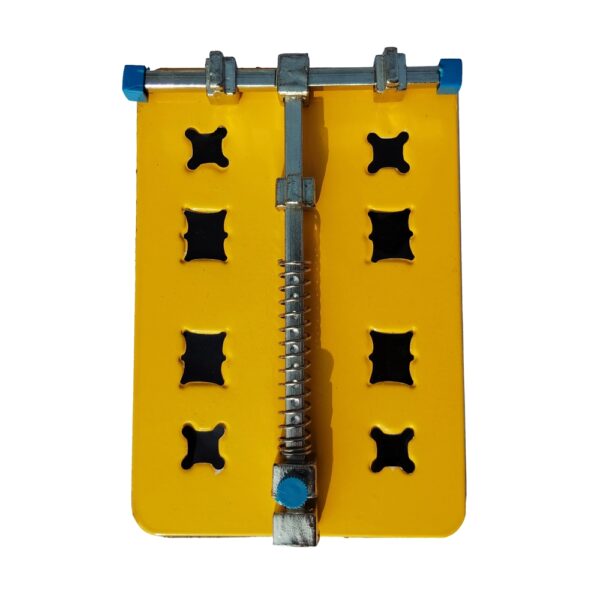

⭐ Introduction – Why the PCB Holder Yellow Is a Must-Have for Technicians

The PCB Holder Yellow is a premium-grade mobile PCB jig stand created to deliver maximum stability, accuracy, and ease during SMD rework and soldering tasks. Crafted from durable stainless steel, this fixture provides superior resistance against heat, rust, and long-term wear. Whether you are repairing mobile CPUs, replacing ICs, or working on FPGA modules, this PCB stand ensures steady, hands-free operation for precise results every time.

🔧 PCB Holder Yellow Key Features & Benefits

✔ Professional Stainless Steel Build

The PCB Holder Yellow is engineered using high-quality stainless steel, ensuring durability and rigidity. Its solid construction supports long repair sessions while preventing deformation or loosening over time. This makes it suitable for mobile phone PCB repair shops, labs, and advanced DIY users.

✔ Perfect Fit for Mobile Device PCBs

Designed specifically for handheld electronics, the jig supports PCBs up to 70mm width and 3mm thickness. This makes it ideal for:

• Smartphone PCBs

• Tablet PCBs

• Small electronic modules

• CPU-level repair tasks

Note: It is not compatible with large TV or desktop motherboards.

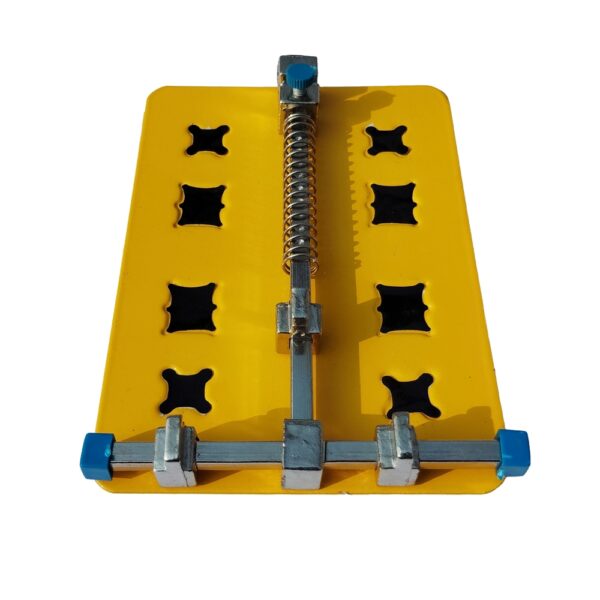

✔ Stable 5-Groove Steel Clamp System

At the heart of the PCB Holder Yellow is its precisely designed steel clamp featuring five positioning grooves. This creates a stable fixing mechanism that keeps PCBs tightly held, even during intense hot-air soldering, desoldering, or chip reballing work.

No slipping.
No shifting.
No mistakes.

✔ Hands-Free PCB Rework

This stand is built to offer complete hands-free convenience. The strong grip allows technicians to operate soldering irons, tweezers, and hot air guns while the PCB stays perfectly aligned. This improves:

• Work speed

• Safety

• Repair accuracy

• Efficiency in CPU rework

✔ FPGA Development Support

The PCB Holder Yellow is not limited to mobile repair. It also supports FPGA development modules, making it a valuable tool for:

• Embedded engineers

• Prototype testing

• Circuit development

• Debugging applications

Its rigid structure and exact holding mechanism provide an ideal platform for electronics prototyping.

📐 PCB Holder Yellow Technical Specifications

📦 Applications of PCB Holder Yellow

The PCB Holder Yellow is suitable for a wide range of tasks including:

• SMD soldering

• CPU rework

• IC replacement

• PCB cleaning

• Hot air rework

• FPGA testing

• Electronic prototype development

Its compact size and 300g weight make it portable and ideal for mobile repair shops, electronics labs, and home workbenches.

❓ FAQ – PCB Holder Yellow

Q1: Can this PCB jig hold large motherboard PCBs?

No, it is designed for mobile and small electronic PCBs up to 70mm wide.

Q2: Is the clamp heat-resistant?

Yes, the stainless steel clamp structure withstands high temperatures from soldering irons and hot air guns.

Q3: Does it support FPGA modules?

Yes, it is compatible with FPGA development boards, making it useful for engineers and developers.

Q4: Is the PCB Holder Yellow portable?

Absolutely. Its compact 135×90×21mm body is lightweight and easy to carry.
